Tilt & Turn Window

|

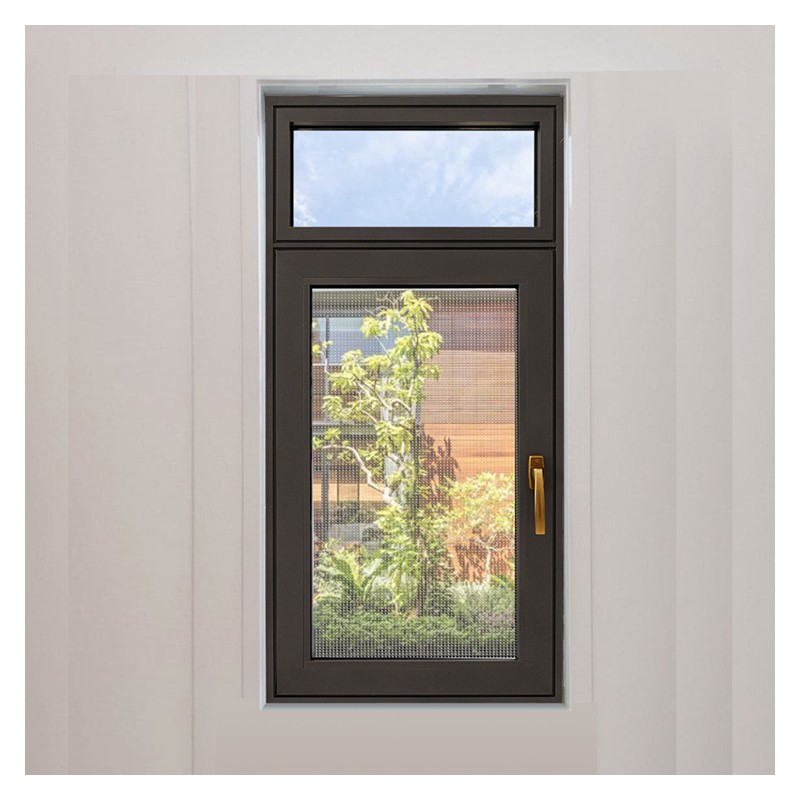

Hihaus Hot Black Aluminum Triple Glazed Tilt And Turn Windows For Sale

black tilt and turn windows
aluminum tilt and turn windows
triple glazed tilt and turn windows

Hihaus Hot Black Aluminum Triple Glazed Tilt And Turn Windows For Sale

This series have a double-inward opening method, The sound insulation performance is outstanding and the overall bright spot is full.

  • Product Origin :

    CHINA
  • Item NO. :

    105
  • Color :

    Customized Color
  • Lead Time :

    15-25 days
  • Trade terms :

    EXW, FOB, CIF, CFR, DDU
  • Shipping Port :

    Guangzhou

Hihaus Hot Black Aluminum Triple Glazed Tilt And Turn Windows For Sale

Product Features

1) The outer frame uses a 35.3mm multi-cavity large heat insulation strip, the glass fan uses a 25.3mm multi-cavity heat insulation strip.
2) The glue flow of corners is more reasonable, and the corner sealing performance is better.
3) The inner and outer flat frame, hidden drainage, can be used for color contrast decoration.
4) The glass adopts three-glass two-cavity design and five doors and windows have higher performance standards.
5) The gauze uses polyester fiber yarn 48 mesh high-definition net, which has high visibility and better light transmission and ventilation performance, and the overall appearance is very high.
6) The wall thickness of the profile is 1.8. Both the profile wall thickness and the performance requirements meet the national standard 8478-2020 edition;
7) The fixed and open glass is sealed with rubber strips, and the inner rubber strips and the pressure line are smoothly transitioned, and the visual effect is neat and beautiful.
8) Double inward opening structure design, and the functional parts of the yarn fan adopt the form of hinge to avoid the situation that the yarn fan is easy to loosen or even fall off caused by the traditional small hinge.

Product Specifications

1. Material :
6063-T5 Thermal break aluminum
2. Glass:
5+12A+5+12A+5 hollow tempered glass
3. Thickness:
1.8mm
4. Color:
Fluorocarbon grey, fluorocarbon dark coffee, black spar.
5.Product Advantages:
Using German-style glue injection technology, with strong stability, better ed waterproof performance, better safety performance
6. Open way
Casement /tilt and turn window

Germany Siegenia configuration

1. GERMANY SIEGENIA CONFIGURATION

German exquisite craft, durable anti-skid, long life, more safe

2. 45° DEGREE SPLICING
The inner and outer window frame and sash are flat frame design,window sash is spliced at 45°,The outer sash material is standard with zinc alloy rounding treatment, beautiful, fashionable, high safety performance;

45° DEGREE SPLICING
stainless steel concealed hinge 3. STAINLESS STEEL CONCEALED HINGE
Single sash load-bearing up to 100Kg, close and open ten thousand times no any damage.

4. GERMAN TYPE GLUE INJECTION PROCESS
German assemble glue injection process design, strong stability;

Better waterproof safety performance.

GERMAN TYPE GLUE INJECTION PROCESS

GERMANY SIEGENIA handle

5. GERMANY SIEGENIA handle
German exquisite craft, durable anti-skid, long life, more safe

Below are for customizing windows type with opening direction, frame color, and glass color options selectable plan.

Custom glass window

custom window and doorHihaus Windows and Doors

Hihaus Team

window production process

Hihaus partner

Why choose us ?

1. Proved reputation and quality from homeowners, contractors, builders and architects for more than 18 years;

2. AAMA/AS2047 standard certified manufacturer;

3. Factory of 123,000 m2 with 800 skilled technicians, strong production capability;

4. 40+ patents, strong ability of design, innovation and custom-made manufacturing;

5. On time delivery satisfying the request of projects.
